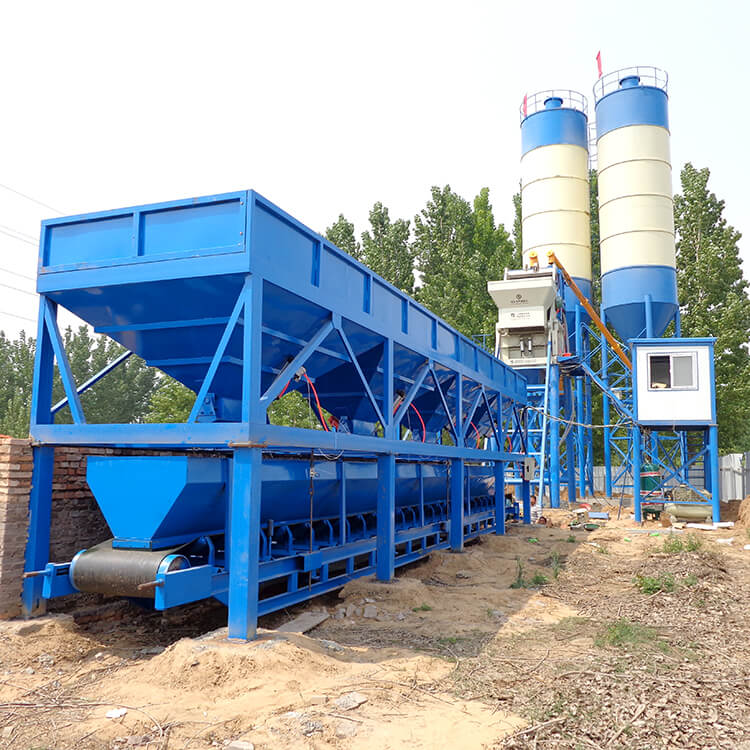

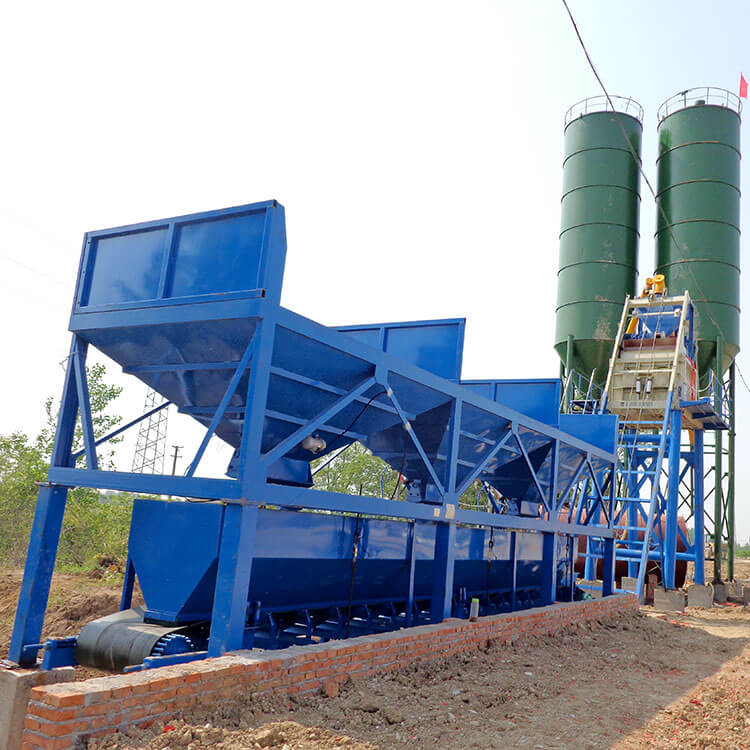

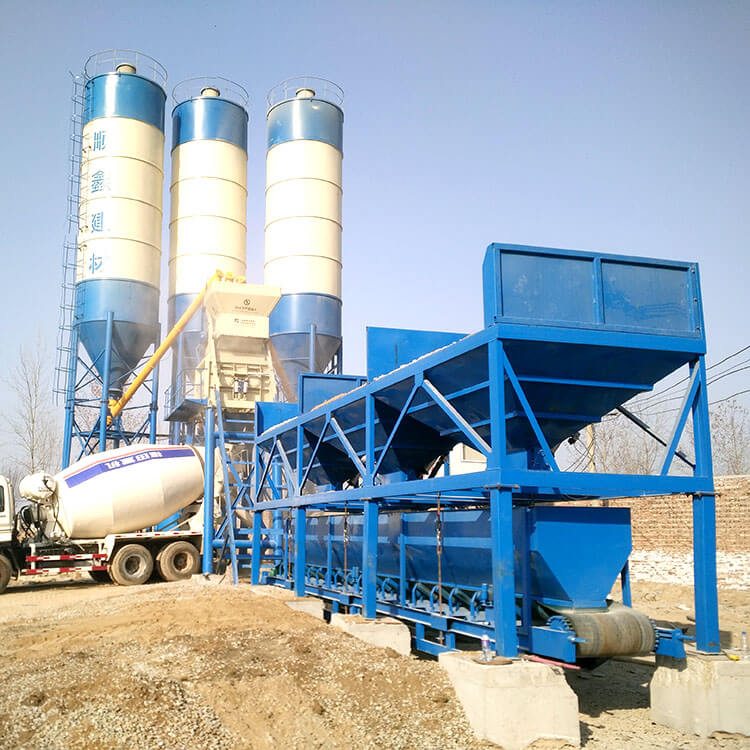

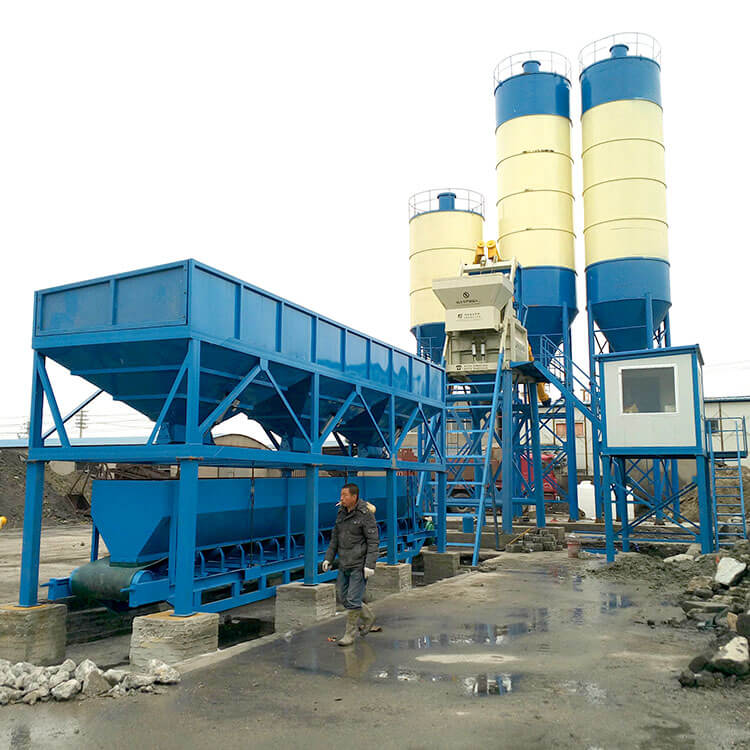

HZS75 Concrete Batching Plant

Equipment introduction:

JIANXIN HZS75 concrete mixing station is mainly composed of JS1500A concrete mixer, PLD2400 batching machine, cement warehouse and screw conveyor, conveyor belt, and central control room. The mixing machine will use Jianxin JS series double-horizontal shaft forced mixer, which is a compulsory, high-efficiency equipment, can produce plastic, dry hard concrete and other concrete, high production efficiency, short mixing time, and beautiful appearance, widely used in large, Medium-sized building construction, roads and bridges, and precast plants for the production of concrete products are ideal equipment for the production of commercial concrete.

The theoretical productivity of the HZS75 mixing plant is 75m3/h, the power of the mixing machine is 60KW, the nominal capacity of the mixer is 1500L, the number of bins in the batching machine is 4 cells, the batching capacity is 2400L, 3×100t, and the capacity and capacity of the powder silo capacity are measured. (0 ~ 1500) ± 1% kg, the range and accuracy of admixture weighing (0 ~ 50) ± 1% kg, the accuracy of aggregate weighing ± 2%, unloading height of 3.8 meters, the total installed power of 179.5KW To meet production needs. The central control will realize the fully automated and adopted electronic scale measurement function, with high measurement accuracy and small error. With screen display, ratio storage, automatic compensation for fall and other functions, and equipped with a manual system, can achieve manual and automatic control of the mixing process. In addition, the device is also equipped with a printing system to achieve centralized control and overall management of the entire device.

The storage bin of the HZS75 concrete mixing plant equipment is arranged in a “one” shape. The loader can load materials and can store three kinds of aggregate at the same time. The measured aggregate is conveyed to the main machine via flat belts and lifting systems. According to the user’s needs, the powder batching system can be equipped with four powder silos, and the powdered materials are respectively sent from the respective screw conveyors to the corresponding powder weighing hoppers. Water and liquid additives are pumped into the corresponding liquid material weighing hopper.

Main details:

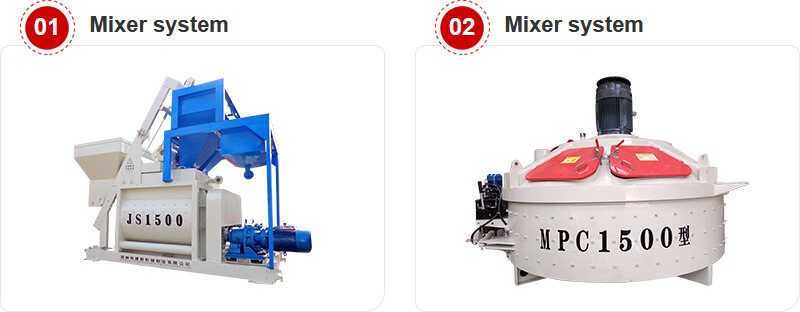

1、Mixer system
The 1500 concrete mixer is a medium-sized concrete mixer, mainly suitable for large and medium-sized building construction, roads and bridges, and prefabricated plants for the production of concrete products. It is a kind of forced horizontal shaft mixer, which can not only mix dry hard concrete, but also mix light aggregate concrete.
2、Mixer system
MPC1500 vertical shaft planetary mixer is also called 1.5cbm planetary concrete mixer. Jianxin Machinery’s vertical shaft planetary mixer adopts advanced technology. The whole machine has stable transmission, high mixing efficiency, high mixing uniformity, unique sealing device without slurry leakage problem, easy to clean the interior.

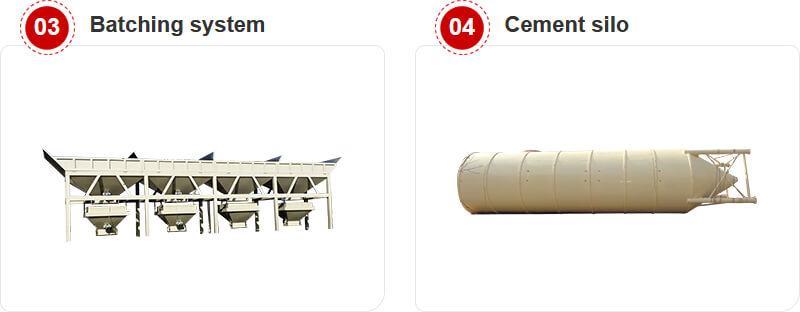

3、Batching system
The PLD2400 concrete batching machine is an efficient and intelligent batching machine launched by Zhengzhou Jianxin Machinery according to many years of research and domestic engineering construction requirements. The capacity of the PLD2400 storage hopper is 2400L, Theoretical productivity is 90 cubic meters per hour.
4、Cement silo
The cement silo is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo.in order to prevent the powder from arching, an arch breaking device is installed at the cone part of the silo; it can be designed as a bolted cement silo, which is convenient to transport and easy to use.

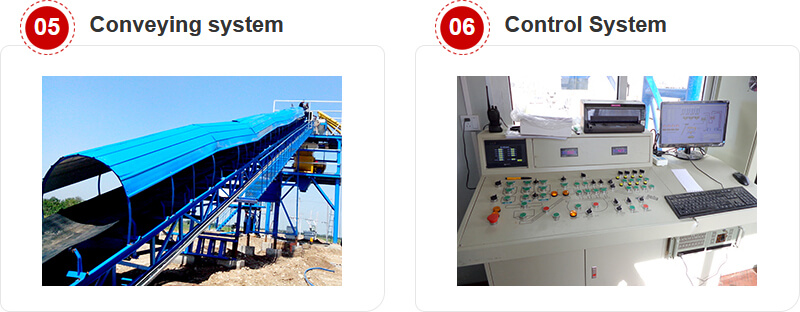

5、Conveying system
The aggregate conveying system adopts the lifting bucket feeding method. The big advantage is that it occupies a small space and saves land resources. The belt conveyor is an ideal efficient continuous transportation equipment, which has the advantages of long transportation distance, large transportation volume.
6、Control System
The control system has the function of screen display, ratio storage, automatic drop compensation, and is equipped with a manual system, which can realize manual and automatic control of the mixing process. In addition, it is also equipped with a printing system to achieve centralized control and overall management of the entire plant.
