YHZS100 Mobile Concrete Batching

Equipment introduction:

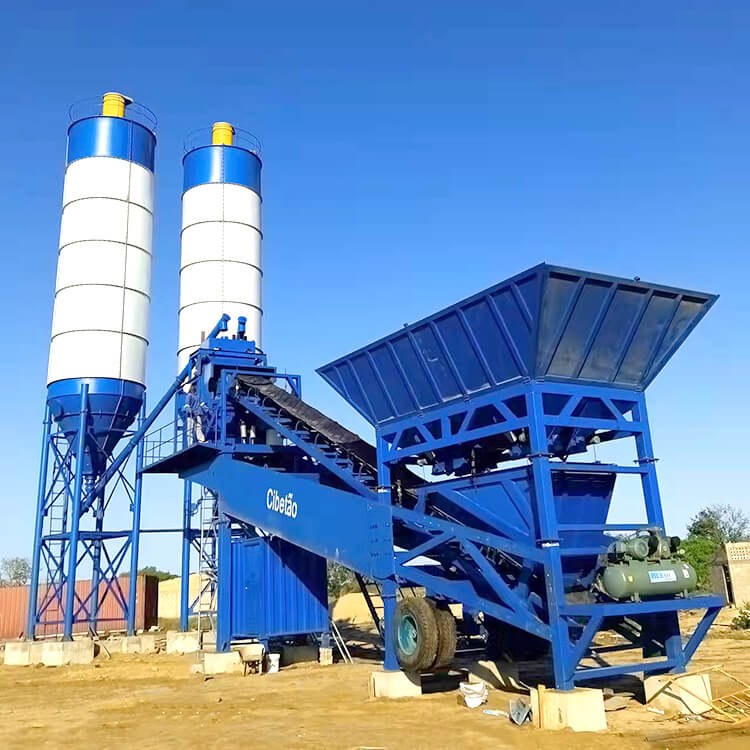

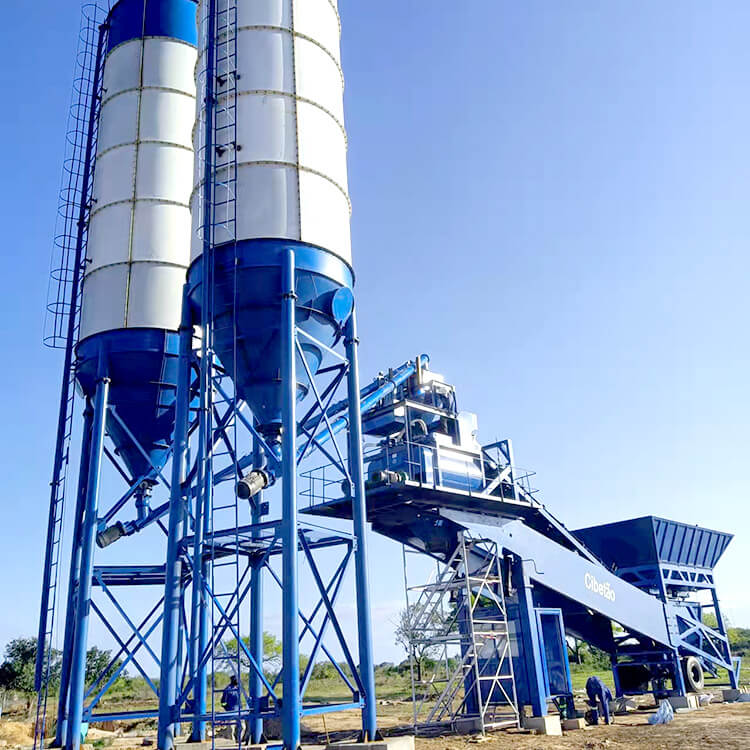

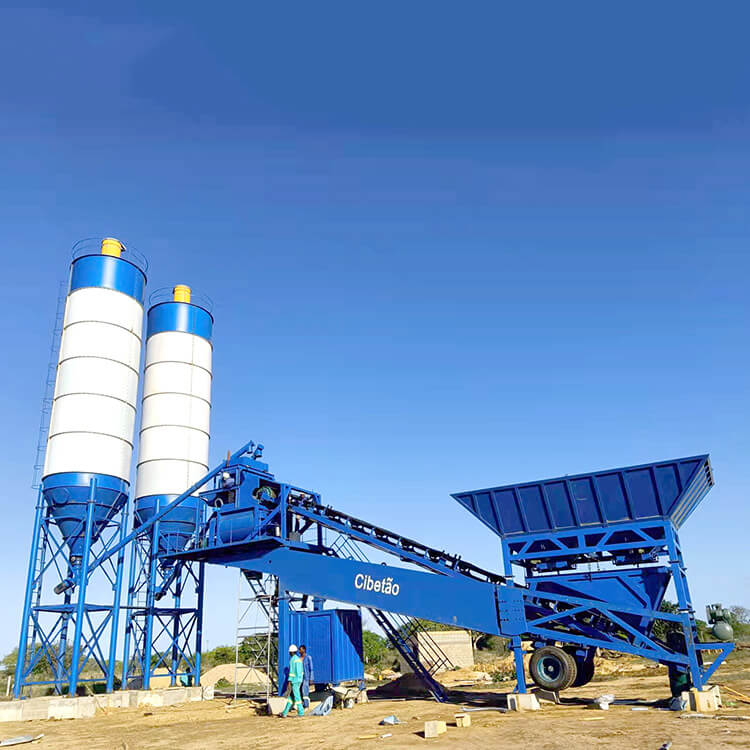

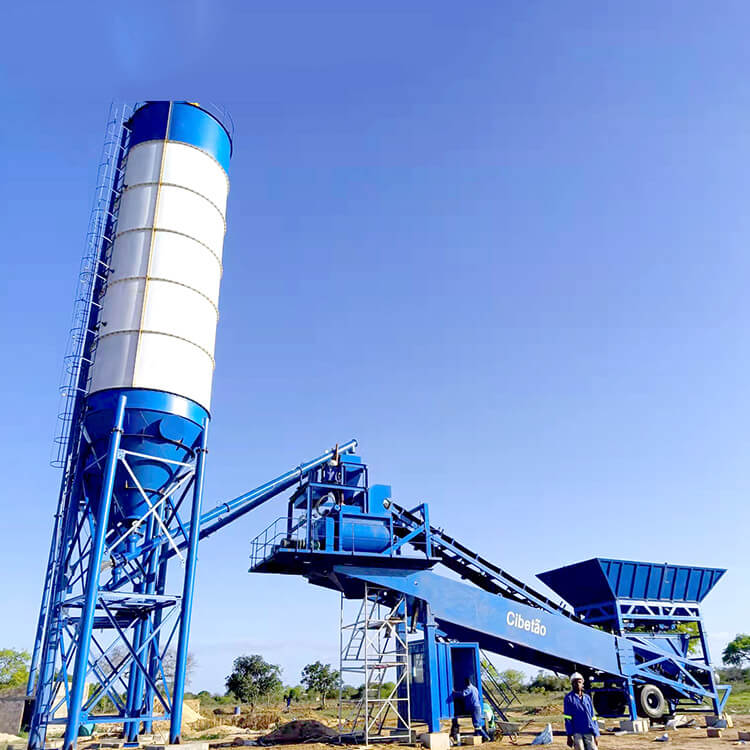

YHZS100 mobile concrete mixing plant is a new type of mobile concrete mixing plant that integrates feeding, weighing, lifting, and stirring into one, ready to go, and stop-and-use. The entire production process will focus on the feeding, weighing, stirring and other processes of concrete production on a trailer unit; the man-machine interface is simple and clear, the work is stable and reliable, applicable to all kinds of harsh environments; the whole design meets the environmental protection requirements , excellent mobile performance; use of two-shaft forced mixer, continuous working ability, stirring evenly and quickly, and mobile and installation is very fast, suitable for short construction period, construction line length and the need for frequent transition of the construction site.

Main details:

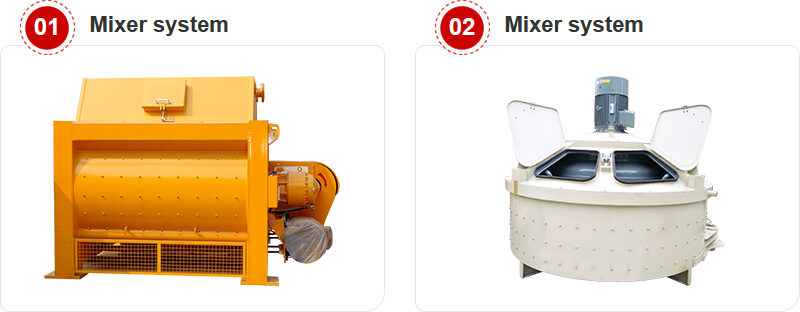

1、Mixer system
The 2000 concrete mixer is mainly divided into gate valve concrete pump and S valve concrete pump, but according to the structure, it can be divided into piston type, squeeze type, and hydraulic diaphragm type. The pump body is installed on the chassis of the car. The telescopic or inflexible placing boom forms a pump truck, which is mainly used in housing construction, bridge and tunnel construction.
2、Mixer system
The MPC2000 vertical shaft planetary mixer adopts a special reducer device and vertical shaft planetary mixing design. Its mixing arm runs like a planet. It has the characteristics of omni-directional mixing without dead corners. Its mixing blades can also be used according to the wear condition. Ensure the low failure operation of the equipment and the efficient use of wearing parts

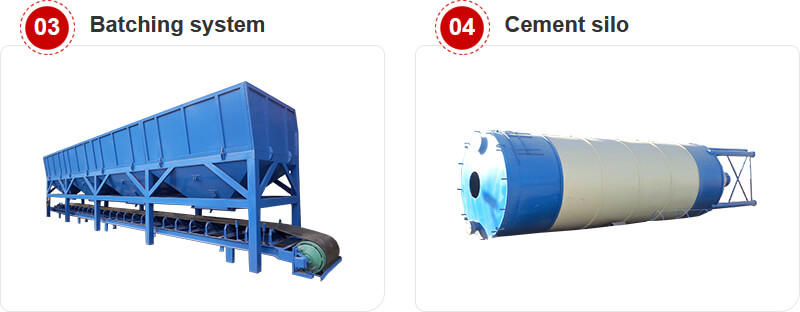

3、Batching system
PLD3200 concrete batching machine model: three-chamber batching machine, four-chamber batching machine, often used as an ideal supporting batching device in large-scale commercial concrete mixing plants. This machine can effectively ensure the accuracy of the mixing ratio of cement, sand, stone, etc., and the use of an electronic weighing system further improves the accuracy of weighing.

4、Cement silo
The cement silo is divided into three types: bolted cement silo, integral cement silo, and horizontal cement silo. The upper and lower parts of the cement silo are equipped with level gauges and dust removal systems; in order to prevent the powder from arching, a blower is installed at the cone of the silo Arch breaking device; it can be designed as a sheet cement warehouse, which is convenient to transport and easy to use.

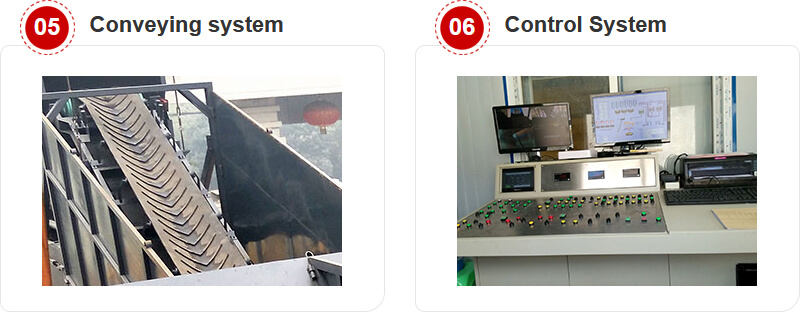

5、Conveying system
The aggregate conveying system adopts the lifting bucket feeding method, which has the advantage of occupying a small space and saving land resources. Belt conveyor is an ideal high-efficiency continuous transportation equipment. It has the advantages of long transportation distance, large transportation volume, continuous transportation, etc. It is easy to realize automation and centralized control.

6、Control System
The control room is at the bottom of the main chassis, and the mixing plant fully automatic control system is installed inside. The control system is the same as the fixed mixing plant. The control room is used as the front support point of the whole station when it is working. The control room is stowed and stored in the bracket during transfer. Inside; all its control circuits do not need to be disassembled.
